Loxone Support Community › Kategorie dotazu: Integrace › Integrace – Peveko Chytrý Ventil
-1 Palec nahoru Palec dolů
před 4 roky
Integrace – Peveko Chytrý Ventil

Jednoduché a spolehlivé řešení pro uzávěr vody při havarijních stavech s ručním ovládáním a zpětnou vazbou.

Podporovaná zařízení:

— Peveko Chytrý Ventil

Nutný HW ze strany výrobce:

Žádný, komunikace je zabudovaná

Nutný HW ze strany Loxone:

Miniserver

volitelně AirBase Extension/Miniserver Go + Nano IO Air

Popis řešení:

Připojení varianty s 24V zpětnou vazbou (Miniserver/Nano IO Air):

  • červený vodič + 9 až 24VDC
  • černý vodič GND ( – )
  • bílý vodič Ovládání proti GND
  • zelený vodič Zpětná vazba – zavřeno „0“; otevřeno „1“; (+ 9 až 24VDC)

  • Ovládání impulzem na Q1 kratším než 2s přepne stav mezi otevřeno-zavřeno
  • Impulz delší než 2,5s a kratší než 3,5s zablokuje ventil a je nutné ho manuálně odblokovat impulzem délky mezi 4-6 vteřin, nebo stisknutím tlačítka přímo na ventilu

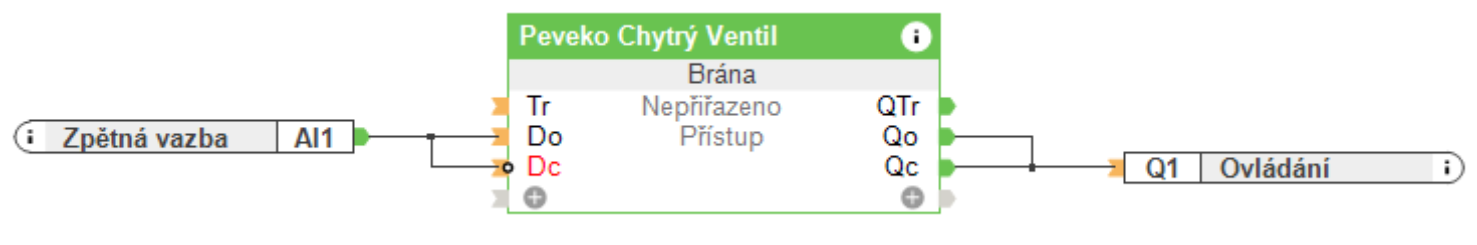

  • Ventil a jeho zpětnou vazbu lze jednoduše zaintegrovat pomocí bloku brána:

Kontakt na zodpovědnou osobu:

Jan Mitáš

Obchodní ředitel

tel: +420 777 769 431

E-mail: [email protected]

Attachments
Peveko.zip
