LED Spot RGBW

This product will not be available for purchase after 15th June 2019. There is a Gen. 2 version of the LED Spot designed specifically for the UK. The LED Spot RGBW Tree White (UK) is fire-rated and offers directional warm white light and diffuse coloured light to provide an incomparable lighting experience in a Real Smart Home.


For information on specifying and designing Loxone lighting take a look at our lighting guide here.

TECHNICAL DATA

  • LED Type: RGBW LED
  • Colour Temperature: 3000 Kelvin Warm White
  • Light Output: 410 Lumen
  • Dimming: 1 – 100% PWM
  • PWM Signal: 125 – 500Hz
  • Beam Angle 120°
  • Tilt Angle: 30°
  • LED count: 12 Multichips for RGBW & 4 High-Powered for WW
  • Power Supply: 24VDC SELV(-10%…+5%)
  • Power Consumption:
    • Red: 2.0W
    • Green: 1.7W
    • Blue: 1.7W
    • Warm White: 5.0W
  • Operating Temperature: 0° – 55°C
  • Protection: IP 20
  • Colour Rendering Index (CRI): Ra: 80 (Typically 82)
  • Surface Temperature: <45°C (at room temperature)
  • Depth: 60mm
  • Mounting Diameter: 68-72mm

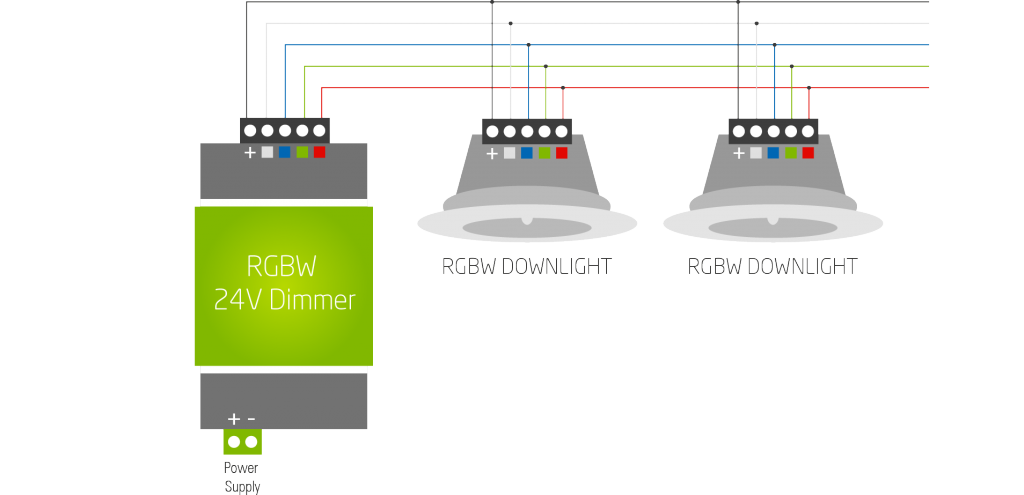

WIRING

Quick Connection Guide for the LED Spot RGBW (pdf)
Download

LED Spot RGBW EC Declaration of Conformity (pdf)
Download

Illumination Data
Download
