Install Speaker
Enhanced Audio Experience
by Quadral
Since 2020, we have been shaping the future of home and building audio with Quadral. With over 50 years of experience, Quadral adheres to the highest quality standards in ptroviding innovative audio solutions. Quadral produces installation loudspeakers specifically for building automation that integrate seamlessly into our systems. Together, we offer first-class solutions for modern buildings – exceptional sound, seamless integration and the highest quality that you can hear.
Single Frame Construction
There are several advantages to single frame construction for loudspeaker housing. We were able to increase our cone surface area by 50% compared to conventional 7” loudspeakers on the market, which corresponds to a doubling of sound pressure. Delays are significantly reduced and efficiency increases as less energy is consumed.
Speaker Cone
The Install Speakers set new standards in sound quality: The Install Speaker 7 impresses with a durable polypropylene cone that delivers clear mids and rich bass. The Install Speaker 10 goes one step further – its Altima cone, made of an aluminum-magnesium-titanium mixture, guarantees superior sound and clarity.
Speaker Cone
The Install Speakers set new standards in sound quality: The Install Speaker 7 impresses with a durable polypropylene cone that delivers clear mids and rich bass. The Install Speaker 10 goes one step further – its Altima cone, made of an aluminum-magnesium-titanium mixture, guarantees superior sound and clarity.
Coaxial System
In the 2-way coaxial system, there is a smaller tweeter perfectly positioned in the center of the woofer. Both drivers are aligned along the same axis (“coaxial”) which radiates the sound from a common point.
The centered sound source ensures a space-saving design and uniform audio dispersion characteristics. As the frequency response is similar in all directions, the sound character remains consistent regardless of the listening position.
Coaxial System
In the 2-way coaxial system, there is a smaller tweeter in the center of the woofer that is perfectly positioned in the middle. Both drivers are aligned along the same axis (“coaxial”) which radiates the sound from a common point.
The centered sound source ensures a space-saving design and uniform dispersion characteristics. As the frequency response is similar in all directions, the sound character remains consistent regardless of the listening position.
Our Install Speaker
All of our install speakers are available as master/client models, taking them to new levels of acoustic functionality. The speakers are discreet and yet provide brilliant sound.
Install Speaker 7
This compact speaker is our recommendation for normal sound reinforcement as used in detached houses, office buildings or hotel rooms.
Install Speaker 10

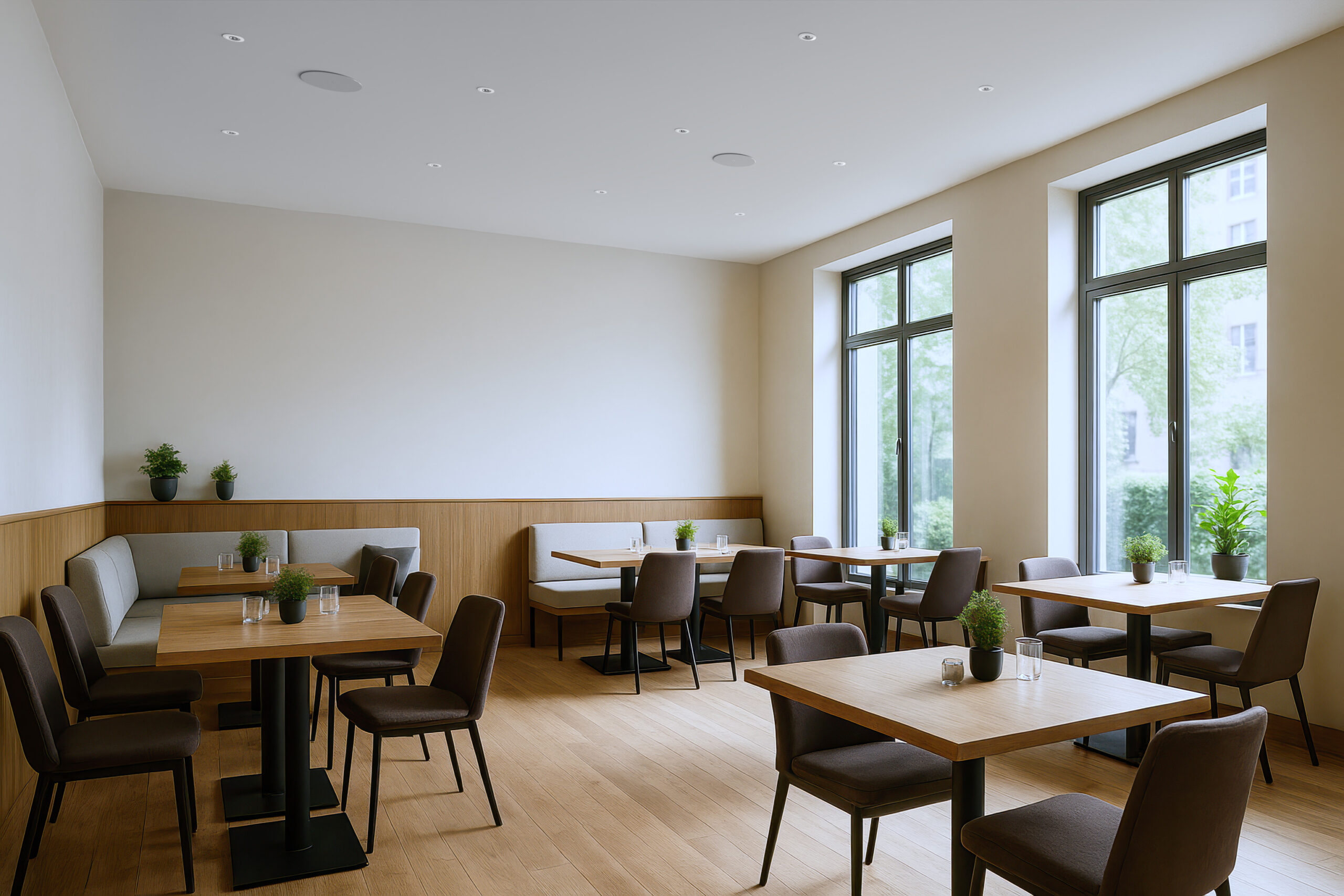

This premium speaker is particularly suitable for professionals with high sound requirements, such as restaurants, lounges or bars.
Install Sub 10

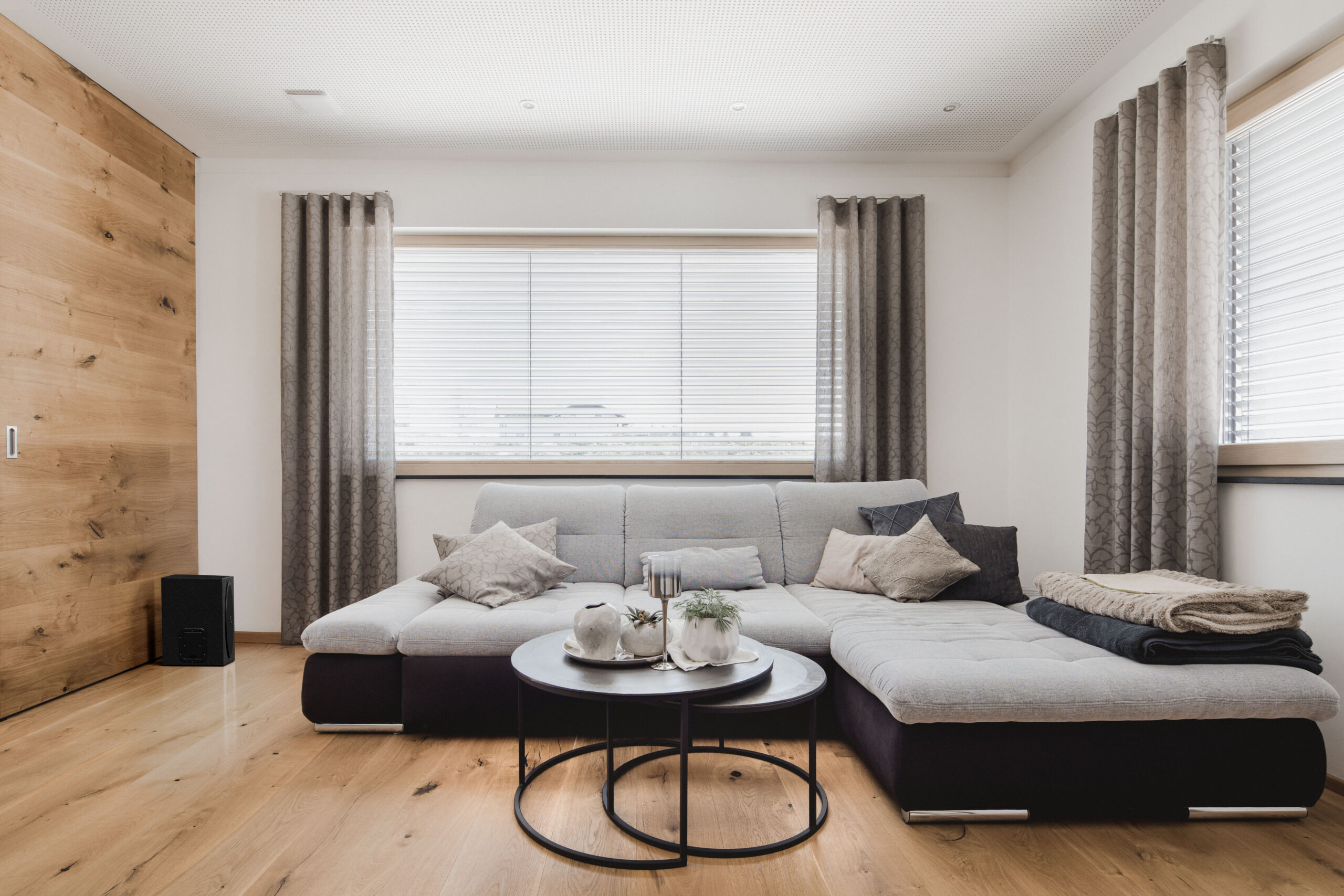

This subwoofer adds powerful bass to any audio installation for even more rounded sound. Placed freely in the room, it is a powerful enhancement.
Loudspeaker Comparison
Our speakers not only impress with their superior technology – the perfect combination of excellent components and sophisticated technology ensures an outstanding sound experience.
| Features | Install Speaker 7 |
Bose Virtually Invisible 791 | KEF Ci 160.2CR |
| Single Frame Construction |  |
 |
|
| True Coaxial System | |
|
|
| Diameter | 9.1 in. | 10 in. | 9.3 in. |
| Membrane Surface | 28.7 sq. in. | 21.7 sq. in. | 18.6 sq. in. |
| Tweeter | 0.98 in. | 0.98 in. | 0.63 in. |
| Installation Depth | 3.7 in. | 4.1 in. | 3.5 in. |
| Master/Client Technology | |
|
|
| Building System Integration | |
|
|
| Alarm System (break-in, fire, water) | |
|
|
| Text-to-Speech Function | |
|
|
Installation Planning by Room Size
Our recommendation is simple and practical: Plan one speaker per 162 sq. ft. of room for balanced sound coverage and a first-class listening experience.
Distance Between Speakers
The Install Speakers are designed to cover the entire room, regardless of the listening position. The sound cones should overlap to ensure consistent and even sound coverage.
Speaker Positioning
The correct positioning of the speakers is crucial for an optimal sound experience. Follow these three simple tips: Arrange the speakers symmetrically, keep at least 3 ft. away from the wall, and place individual speakers centrally in the room. Our Install Sub 10, on the other hand, is completely free in terms of positioning.
Simplified Installation
Our install speakers are designed for easy installation – whether in concrete ceilings, suspended ceilings or surface-mounted. With the right accessories for every installation situation, integration is simple and flexible.

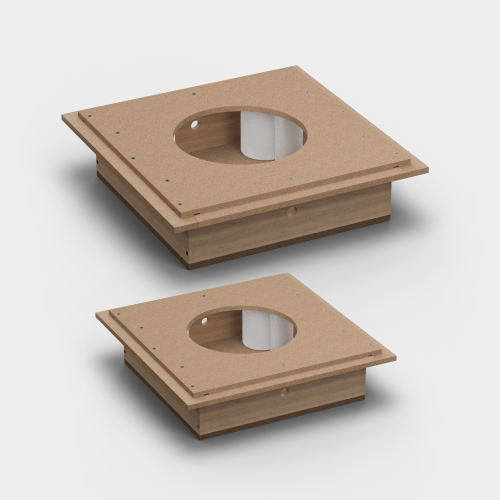

Back Box
Install 7 & 10

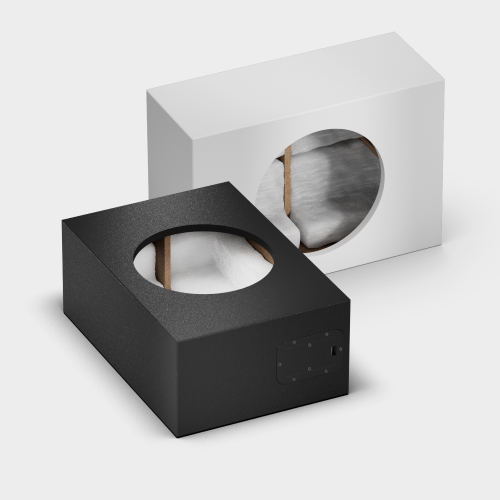

Back Box
Install Sub 10
| Features | Install Speaker 7 Passiv/Master/Client |
Install Speaker 10 Passiv/Master/Client |
Install Sub 10 Master/Client |
|---|---|---|---|
| Installation housing Install 7 Article #: 200202 |
|
|
|
| Installation housing Install 10 Article #: 610160 |
|
|
|
| Mounting box for 7” Install Speaker | |
|
|
| Mounting box for 10” Install Speaker | |
|
|
| Housing for 10” Install Speaker
Article #: 610164 |
|
|
|

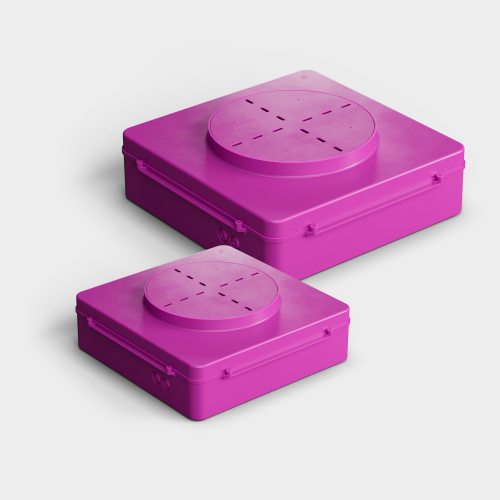

| Concrete installation housing Install 7 Article #: 610161 |
|
|
|
| Concrete installation housing Install 10 Article #: 610173 |
|
|
|
Designing Power Supply Units
A simple rule of thumb applies to power supply planning: Plan 10 watts per speaker for rooms with a low concurrency, such as offices or detached houses. For more intensive sound reinforcement, such as in bars and restaurants, we recommend 20 watts. The Power Supply & Backup provides up to 60A for short periods to cover power peaks safely.
| Normal sound reinforcement (low concurrency factor) factor e.g. office, EFH, store) |
Intensive sound reinforcement (high simultaneous factor e.g. bar, restaurant, event location) |
| 10 Watt pro loudspeaker | 20 Watt pro loudspeaker |
