Install Speaker
Audio Excellence
by Quadral
Since 2020, we have been shaping the future of audio and building automation together with Quadral. With over 50 years of experience, Quadral stands for the highest quality standards and innovative solutions. Since the collaboration started, Quadral has been focussing on installation loudspeakers specifically for building automation that can be seamlessly integrated into our systems. Together, we offer first-class solutions for modern buildings – exceptional sound, seamless integration and the highest quality that you can hear.
Single Frame Construction
When the housing of a loudspeaker consists of a continuous frame, this has various advantages. We were able to increase our cone surface area by 50% compared to standard 7‘’ loudspeakers on the market, which corresponds to a doubling of the sound pressure. Delays can also be significantly reduced and efficiency increases as less energy is consumed.
Speaker Cone
The Install Speakers set new standards in sound quality: the Install Speaker 7 impresses with a robust polypropylene cone that delivers clear mid-range and rich bass. The Install Speaker 10 goes one step further – its Altima cone, made from an aluminium-magnesium-titanium mix, guarantees an excellent sound image with the finest detail.
Speaker Cone
The Install Speakers set new standards in sound quality: the Install Speaker 7 impresses with a robust polypropylene cone that delivers clear mid-range and rich bass. The Install Speaker 10 goes one step further – its Altima cone, made from an aluminium-magnesium-titanium mix, guarantees an excellent sound image with the finest detail.
Coaxial System
In the 2-way coaxial system, there is a smaller tweeter in the centre of the woofer, which sits exactly in the middle. Both drivers are aligned along the same axis (‘coaxial’) and appear to radiate the sound from a common point.
The centred sound source not only ensures a particularly space-saving design, but also uniform dispersion characteristics. As the frequency response is similar in all directions, the sound character remains consistent regardless of the listening position.
Coaxial System
In the 2-way coaxial system, there is a smaller tweeter in the centre of the woofer, which sits exactly in the middle. Both drivers are aligned along the same axis (‘coaxial’) and appear to radiate the sound from a common point.
The centred sound source not only ensures a particularly space-saving design, but also uniform dispersion characteristics. As the frequency response is similar in all directions, the sound character remains consistent regardless of the listening position.
Our Install Speakers
All our install speakers are available as master/client models, which takes them to a new level both functionally and acoustically. The speakers are discreetly unobtrusive and yet provide bombastic sound.

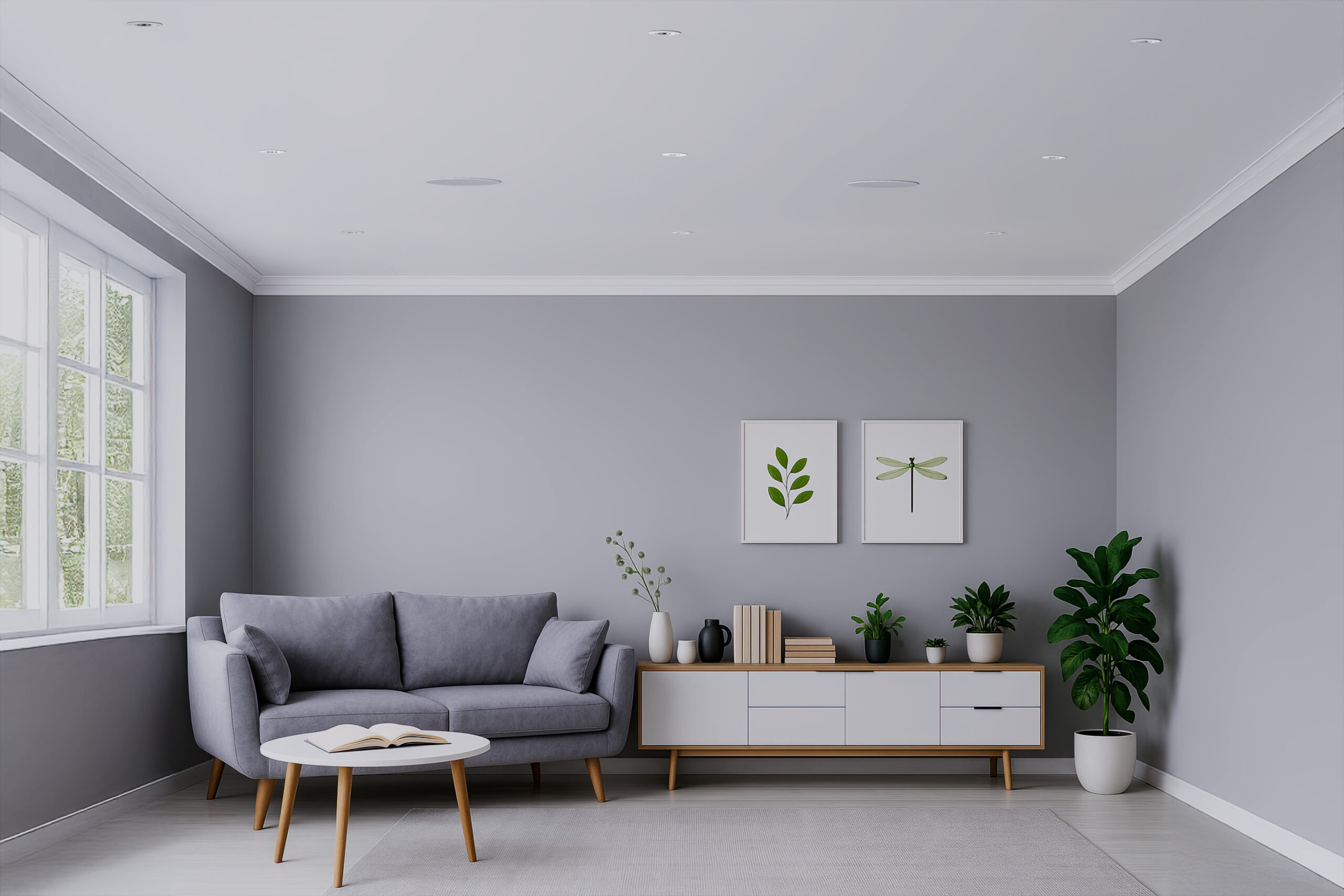

Install Speaker 7
The compact speaker blends in seamlessly and is our recommendation for normal sound reinforcement as used in family homes, office buildings or hotel rooms.

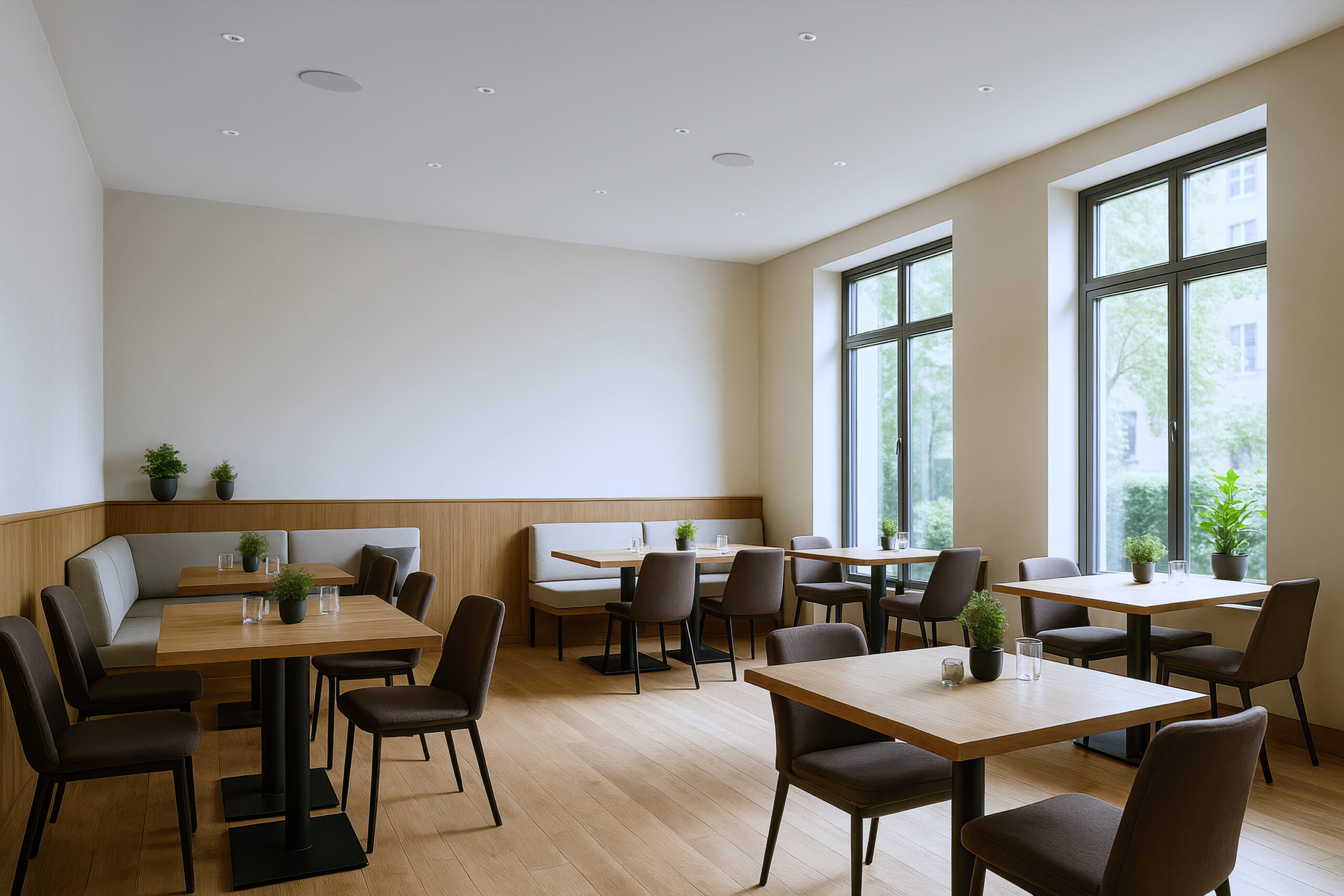

Install Speaker 10
The premium speaker is particularly suitable for professionals with high sound requirements, such as restaurants, lounges or bars. The clear sound takes your setup to a new level in terms of sound technology.

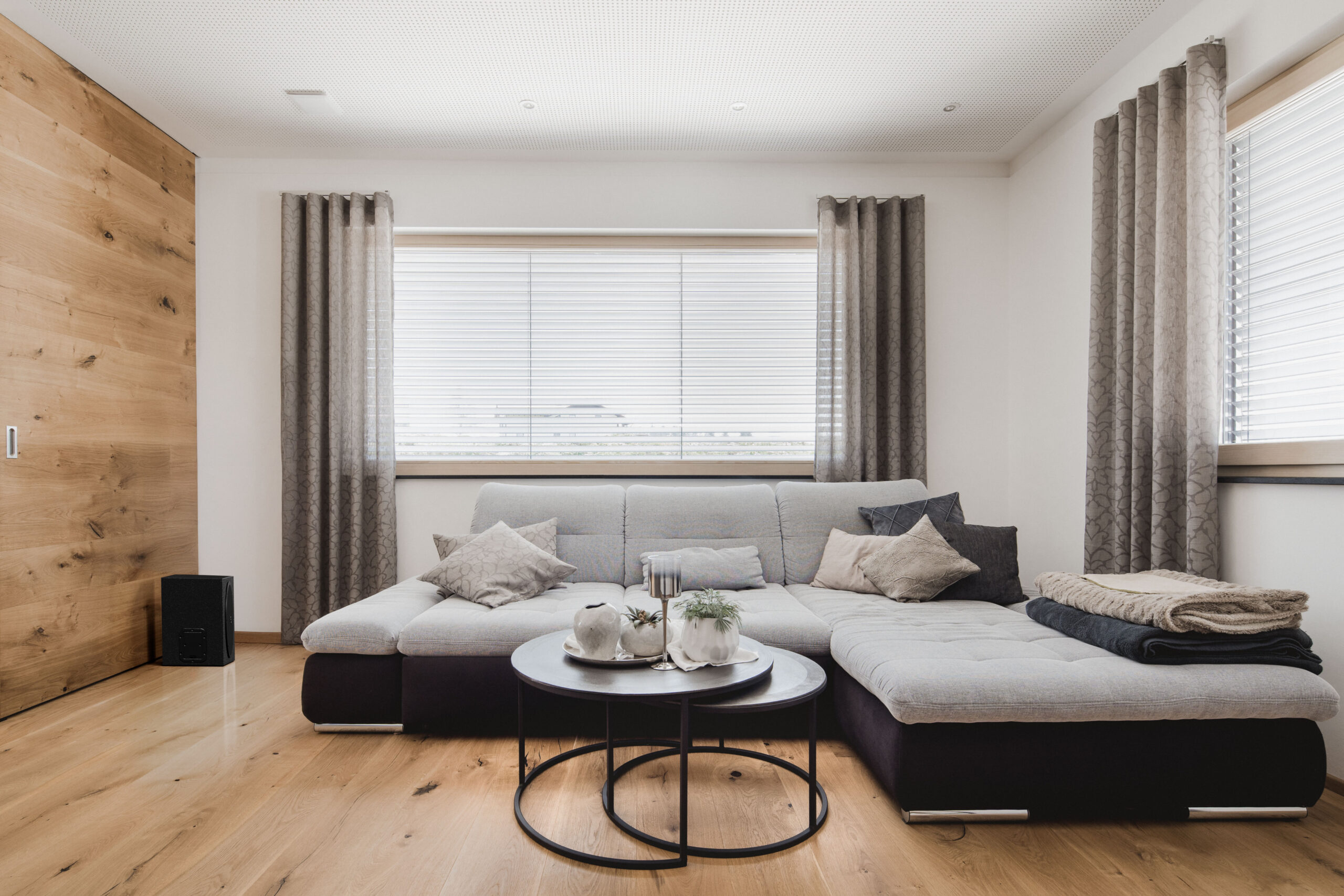

Install Sub 10
The subwoofer adds powerful bass to any audio installation for even more rounded sound. Freely positioned in the room, it is an enrichment for any setup.
Speaker Comparison
Our speakers not only impress with their superior technology – the perfect combination of excellent components and sophisticated technology ensures an outstanding sound experience.
| Features | Install Speaker 7 |
Bose Virtually Invisible 791 | KEF Ci 160.2CR |
| Single frame construction |  |
 |
|
| True coaxial system | |
|
|
| Diameter | 232mm | 254mm | 235mm |
| Membrane surface | 185cm² | 140cm² | 120cm² |
| Tweeter | 25mm | 25mm | 16mm |
| Installation depth | 93mm | 105mm | 89mm |
| Master-/Client technology | |
|
|
| Integration into building systems | |
|
|
| Alarm systems (burglary, fire, water) | |
|
|
| Text-to-speech feature | |
|
|
Recognized with Multiple Awards
The quality and sound of the speakers from our long-established company have been recognised with multiple awards over the years. We are proud that our product range has always been recognised as the reference for top sound in the world of high-end audio.
How Many Speakers per Room?
Our recommendation is simple and practice-orientated: Plan one speaker per 15 square metres of room. This will give you balanced sound coverage and a first-class listening experience.
Distance Between the Speakers
The Install Speakers are designed to cover the entire room, regardless of the listening position. The sound cones should overlap to ensure consistent and even sound coverage.
(With a ceiling height of 2.60m distance from loudspeaker to loudspeaker max. 3.40m min. 2m. – Ideally 3m, person ear height at 1.60m)
Speaker Positioning
The correct positioning of the speakers is crucial for an optimal sound experience. Follow these three simple tips: Arrange the speakers symmetrically, keep at least 1 meter away from the wall, and place individual speakers centrally in the room. Our Install Sub 10, on the other hand, is completely free in terms of positioning.
Installation Situation
Our install speakers are designed for uncomplicated installation – whether in concrete ceilings, suspended ceilings or surface-mounted. With the right accessories for every installation situation, integration is simple and flexible.

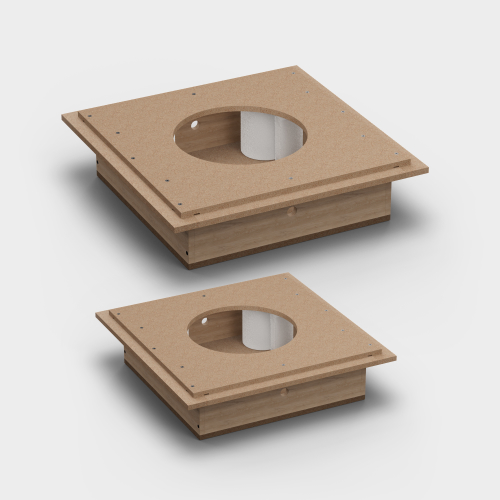

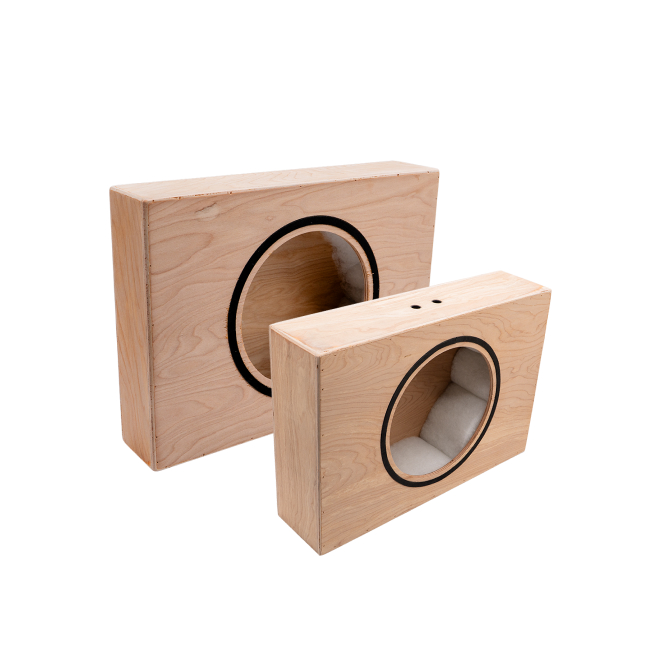

Back Box
Install 7 & 10

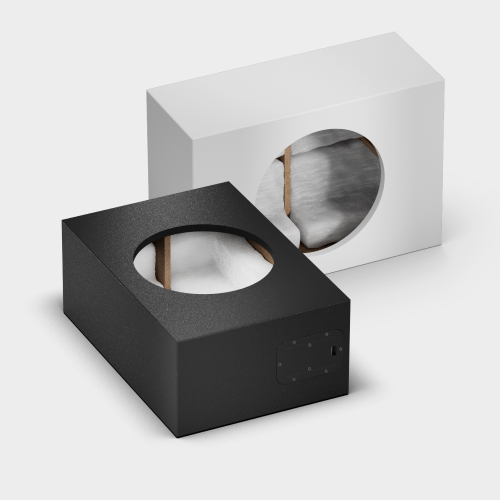

Back Box
Install Sub 10
| Features | Install Speaker 7 Passiv/Master/Client |
Install Speaker 10 Passiv/Master/Client |
Install Sub 10 Master/Client |
|---|---|---|---|
| Backbox for Install 7 Item no.: 200202 |
|
|
|
| Backbox for Install 10 Item no.: 610160 |
|
|
|

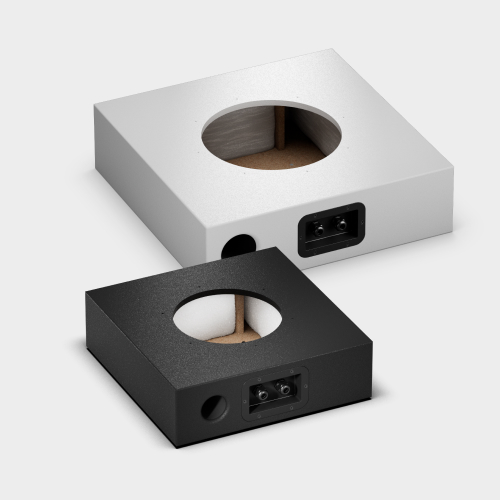

| Surface Box for 7″ Install Speaker Item no.: 610158 Item no.: 610171 |
|
|
|
| Surface Box for 10″ Install Speaker Item no.: 610159 Item no.: 610172 |
|
|
|
| Box for 10″ Install Speaker Item no.: 610164 |
|
|
|

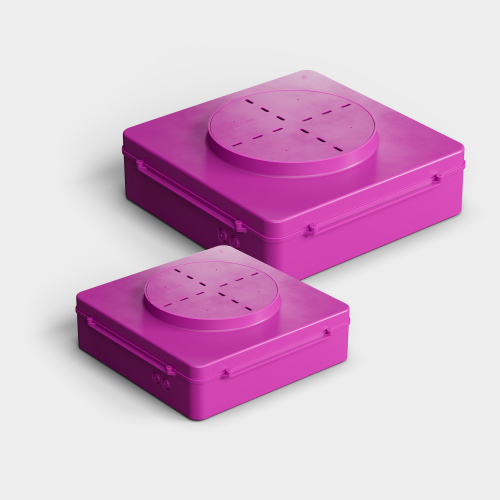

| Concrete Backbox Install 7 Item no.: 610161 |
|
|
|
| Concrete Backbox Install 10 Item no.: 610173 |
|
|
|
Power Supply Planning
A simple rule of thumb applies to power supply planning: Plan 10 watts per speaker for rooms with a low simultaneity factor, such as offices or detached houses. For more intensive sound reinforcement, such as in bars, we recommend 20 watts. The Power Supply & Backup provides up to 60A for short periods to safely cover power peaks.
| Normal sound reinforcement (low simultaneous factor e.g. office, apartment block, shop) |
Intensive sound reinforcement (high simultaneity factor e.g. bar, restaurant, event location) |
| 10 watts per speaker | 20 watts per speaker |
