Master/Client Technology
The Next Level of Audio Revolution
Cover long distances with minimal wiring. Integrate an unlimited number of speakers with outstanding sound quality. This is the new Master/Client technology. It reduces wiring effort by over 80%, enabling flexible expansion and scalable audio installations. This ensures fully integrated, brilliant sound with easy installation.
Flexible & Scalable
Numerous applications thanks to easy scalability – from a single room to entire building complexes.
Easy & Quick Installation
The Master/Client technology reduces wiring with bus topology, enabling flexible expansion and scalable installation.
Reliable & Maintenance-Free
With minimal wiring requirements, the risk of failures is significantly reduced. Once installed, the Master/Client technology runs smoothly without regular interventions.

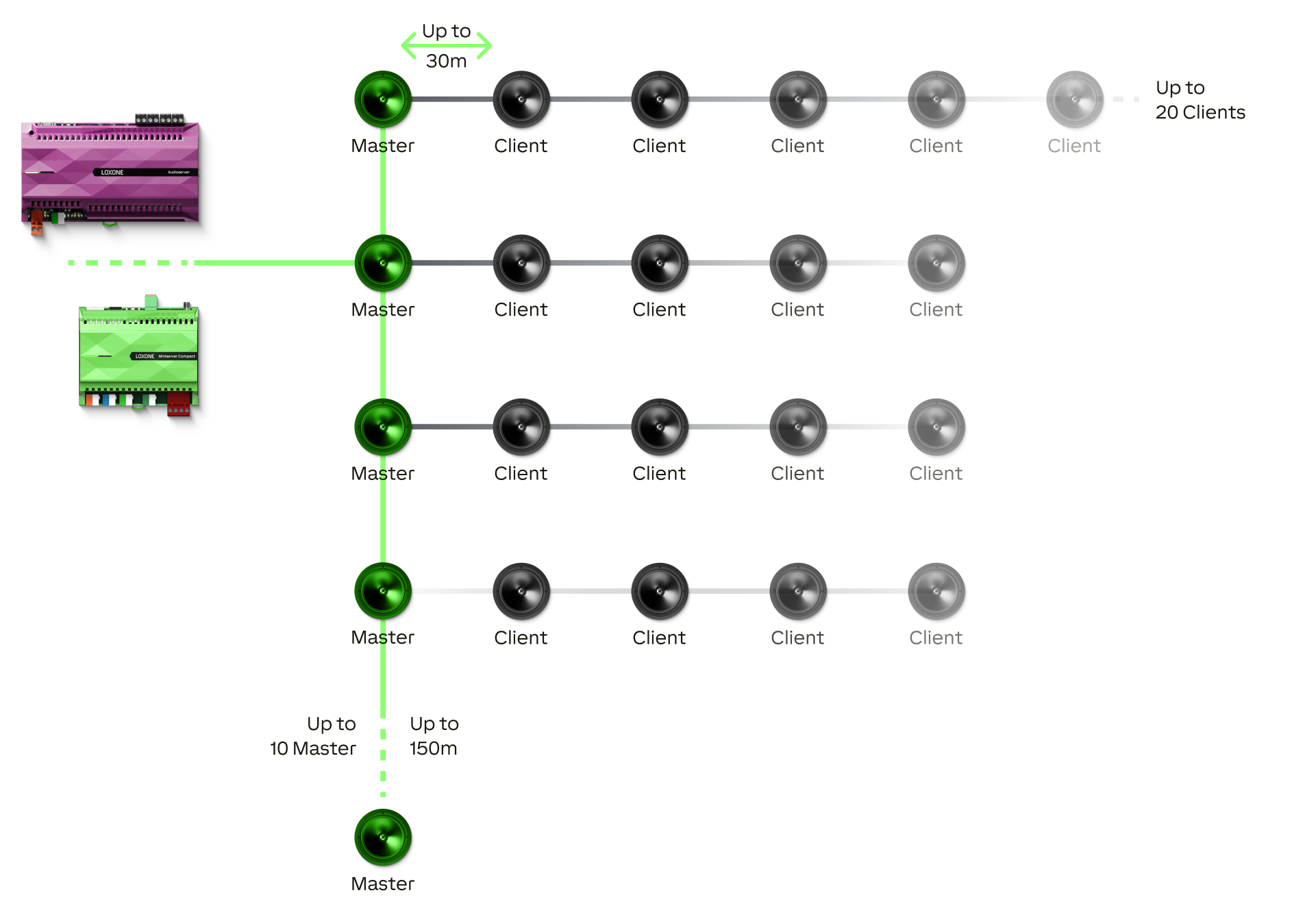

The Audio Installation: Master/Client Technology
More Power. Fewer Cables. Lower Costs.
Master Speakers
Clients per Master Speaker
Speakers per Tree Turbo interface
less wiring
Comparison of Audio Technologies
Our audio solution surpasses conventional systems and 100V technologies in efficiency, flexibility, and sound quality – setting new standards.
| Features | Loxone Master/Client Audio Technology | Conventional Audio Systems (passive Speakers) | 100V Audio Systems |
|---|---|---|---|
| Audio Signal Quality | Lossless, digital, premium quality | Analog, lossy | Low audio quality |
| Wiring Effort | Up to 80% less wiring | High wiring effort (point-to-point) | High due to complex topologies |
| Cable Legnths | Supports significantly longer cable lengths | Limited cable lengths | Relatively long cables, but low quality |
| Scalability | Highly scalable, easy to expand | Limited scalability | Scalable with appropriate hardware |
| Flexibility in Grouping | Flexible grouping (software) |  |
|
| Installation Complexity | Simple bus wiring | Cable to each speaker | Requires specific hardware |
| Integration into Building Systems |  |
|
|
| Alarmsound (Fire/Water/Intrusion) | |
|
|
| Custom Announcements | |
|
|
| Text-to-Speech Function | |
|
|
| Energy Efficiency | Very efficient, thanks to Class-D amplifier and DSP | Less efficient, higher losses due to cables, crossover, etc. | Relatively efficient but with transformation losses |
Master/Client:
Smart Wiring, Perfect Sound
The Benefits of
Master/Client Technology
Highly efficient with low power consumption
Our innovative speakers deliver the entire audio spectrum in high-quality resolution. The digital signal processor separates the frequency ranges into highs and lows absolutely loss-free. Together with the efficient Class-D amplifier, this ensures a lossless audio experience of the highest quality.
Double RMS Power Compared to Stereo Extension
Analog Class A/B amplifiers often have significant quality losses. That’s why we use digital signal processing in our Master/Client speakers. The result is a doubling of RMS power to 36W compared to a stereo extension – and with lower power consumption.
Bluetooth
Audio content can be transmitted to the Master Speaker via Bluetooth from any device as an additional feature. Bluetooth capability of a Master Speaker can be enabled or disabled in Loxone Config through logic settings.
Practical Example:
Audio Installation
in the Seminar Area
Nearly invisible Master/Client speakers in the seminar area of the Loxone Campus provide excellent sound during presentations, training, and more. Pressing the Bluetooth button on the Touch Pure Flex activates pairing for 2 minutes. After a successful connection, content can be played from any Bluetooth-enabled device. The Touch Pure Flex also allows you to adjust volume, music source, and many other settings.
Our Master/Client
Speakers
Great sound, powerful bass, indoors or outdoors. With our Master/Client speakers, you bring the best sound quality to your building.

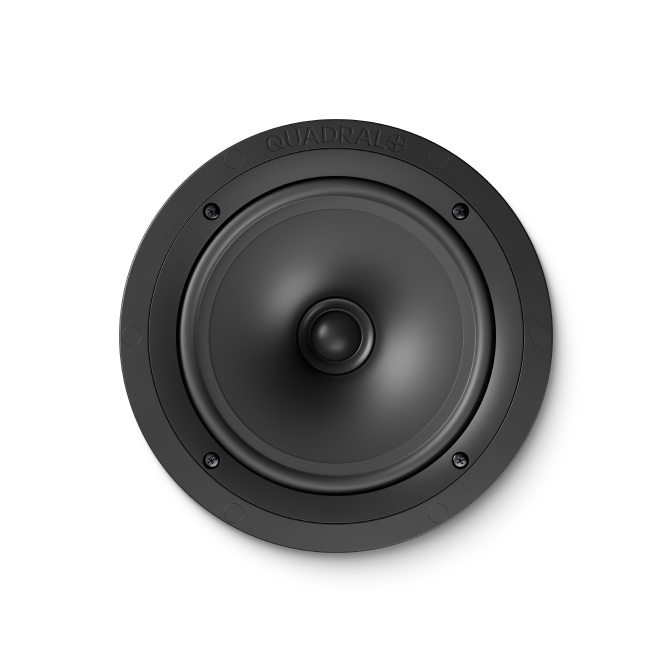

Install Speaker 7 Master/Client
The compact speaker integrates seamlessly, making it ideal for installation in private projects.
Install Sub 10 Master/Client
The subwoofer enhances any installation, improving sound quality with deep frequency playback.

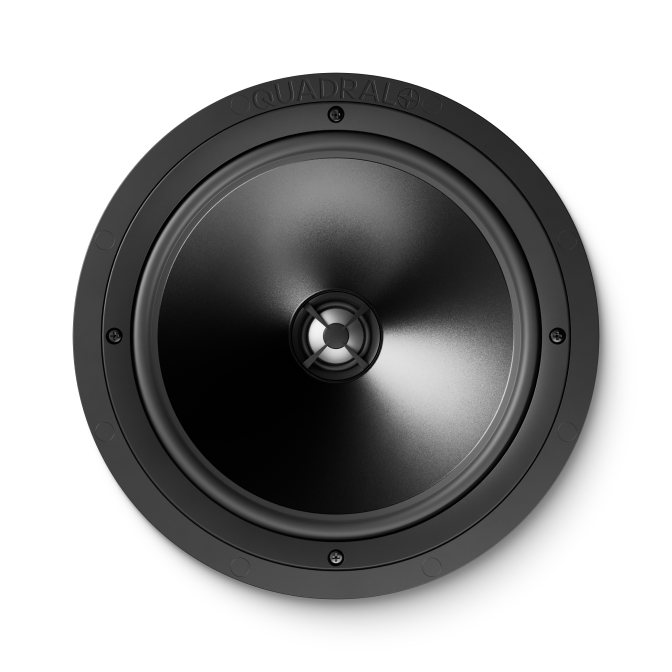

Install Speaker 10 Master/Client
The speaker for professional projects and demanding clients. Easy to install and expand.

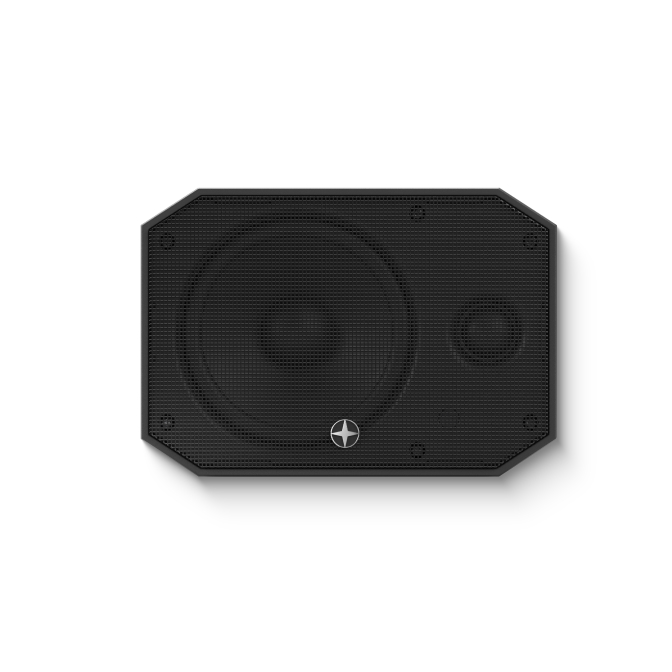

Satellite Speaker IP64 Master/Client
The Satellite Speaker IP64 is the universal answer for all your audio needs – indoors or outdoors.
Can Client Speakers of a Different Type Be Operated with a Master Speaker?
Yes, it’s possible. Regardless of which Master Speaker you use, it can be combined with all types of Client Speakers.
What’s the Maximum Cable Length Between Client Speakers?
The maximum cable length between a Master Speaker and a Client Speaker, or from one Client Speaker to the next, should not exceed 30 meters. The wiring must follow a daisy chain configuration.
Can Master/Client Speakers Be Operated with Decentralized Power Supplies?
Yes, this is possible. The GNDs (negative poles) of all power supplies must be connected.
Is the Power Supply & Backup Suitable for Supplying the Master/Client Technology?
Yes. Stereo Extensions can be connected to the Tree Turbo interface in combination with Master Speakers.
